Aquanello Eterna Concealed Shut-Off Valve for ET2310-00 Concealed Shower Faucet

The Aquanello Eterna ET2310-00 built-in shut-off valve forms the technical basis for a seamlessly integrated shut-off function within a Aquanello Eterna built-in shower. The entire internal mechanism is mounted behind the wall, so that after installation, only the matching trim and the control are visible.

The shut-off valve allows the water supply to a connected shower function to be opened and closed in a controlled manner. This enables the component to be used in various Eterna shower setups where a separate shut-off function is desired.

Concealed shut-off valve for a sleek shower setup

The Aquanello Eterna ET2310-00 is designed for concealed installation behind the wall. As a result, the technical internals remain completely out of sight.

A matching Aquanello Eterna trim piece is mounted on the exterior. This creates a minimalist shower wall where only the necessary controls are visible.

Opening and Closing the Water Supply

The function of the ET2310-00 is to turn the water flow to a connected plumbing fixture on and off.

This allows the shut-off valve, for example, to be integrated into a shower system where separate controls are desired for a head shower, hand shower, or other compatible water outlet.

Compact installation box

The technical components are housed in a compact installation box. This box protects the valve mechanism during installation and allows the system to be securely mounted within the wall structure.

The integrated mounting points around the housing ensure a secure attachment before the wall is further finished.

Adjustable installation depth from approximately 68 to 90 mm

According to the technical specifications, the flush-mounting unit is suitable for an installation depth of approximately 68 to 90 mm.

This adjustment range offers flexibility during installation and allows the system to be correctly positioned relative to the final finished wall.

Compact technical dimensions

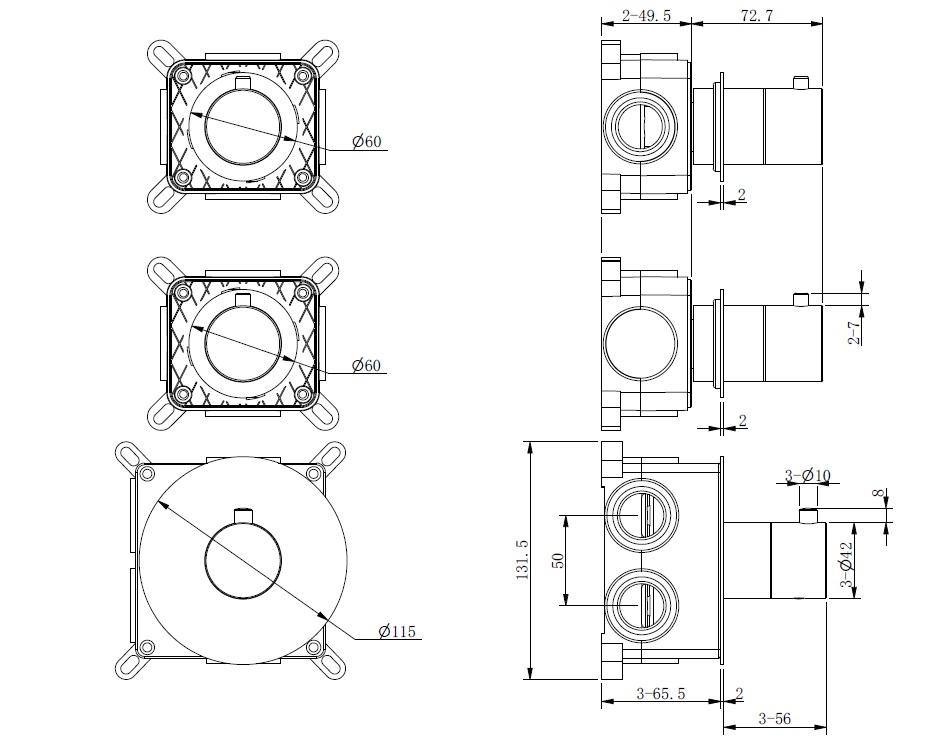

According to the technical drawing, the installation box measures approximately 101 x 96 mm. This keeps the installation compact and allows it to be neatly integrated into the wall structure.

The central installation zone has a diameter of approximately Ø60 mm. After installation, the visible operating mechanism is finished with a matching Eterna trim piece.

Compatible with a Eterna trim piece

The ET2310-00 refers exclusively to the technical mounting component. The visible trim piece is installed separately and must be compatible with this mounting system.

This allows the same technical interior components to be combined with different colors and finishes within the Aquanello Eterna series.

Please note: The trim piece is not included and must be ordered separately, unless the ET2310-00 is part of a complete Aquanello Eterna set.

Advantages of a recessed shut-off valve

• Sleek flush-mount installation: technical components fully concealed behind the wall
• Shut-off function: controlled opening and closing of the water flow
• Compact installation box: neat integration into the wall structure
• Adjustable installation depth: approximately 68 to 90 mm
• Minimalist wall appearance: only the trim piece remains visible
• Can be combined with Eterna trim pieces: various finishes available

Key features

• Brand: Aquanello
• Series: Eterna
• Model: ET2310-00
• Product type: Built-in shut-off valve
• Function: Opening and closing the water flow
• With shut-off valve: Yes
• Installation: Flush-mounted / behind the wall
• Application: Shower / built-in plumbing system
• Concealed box: Yes
• Installation depth: approx. 68–90 mm
• Flush-mount box dimensions: approx. 101 x 96 mm
• Diameter of central installation zone: approx. Ø60 mm
• Finishing piece included: No
• Suitable for: Compatible Aquanello Eterna trim pieces and shower sets
• Product class: Shut-off valve / built-in faucet
• Warranty: 5 years

Technical foundation for a minimalist built-in shut-off valve

The Aquanello Eterna ET2310-00 offers a compact technical solution for independently turning a water function on and off within a built-in shower system.

Thanks to the compact in-wall box, adjustable installation depth of approximately 68 to 90 mm, and fully concealed installation, the system can be neatly integrated behind the wall.

When combined with a matching Aquanello Eterna trim piece, the result is a sleek, high-quality control system in which the technical components remain completely hidden from view.
